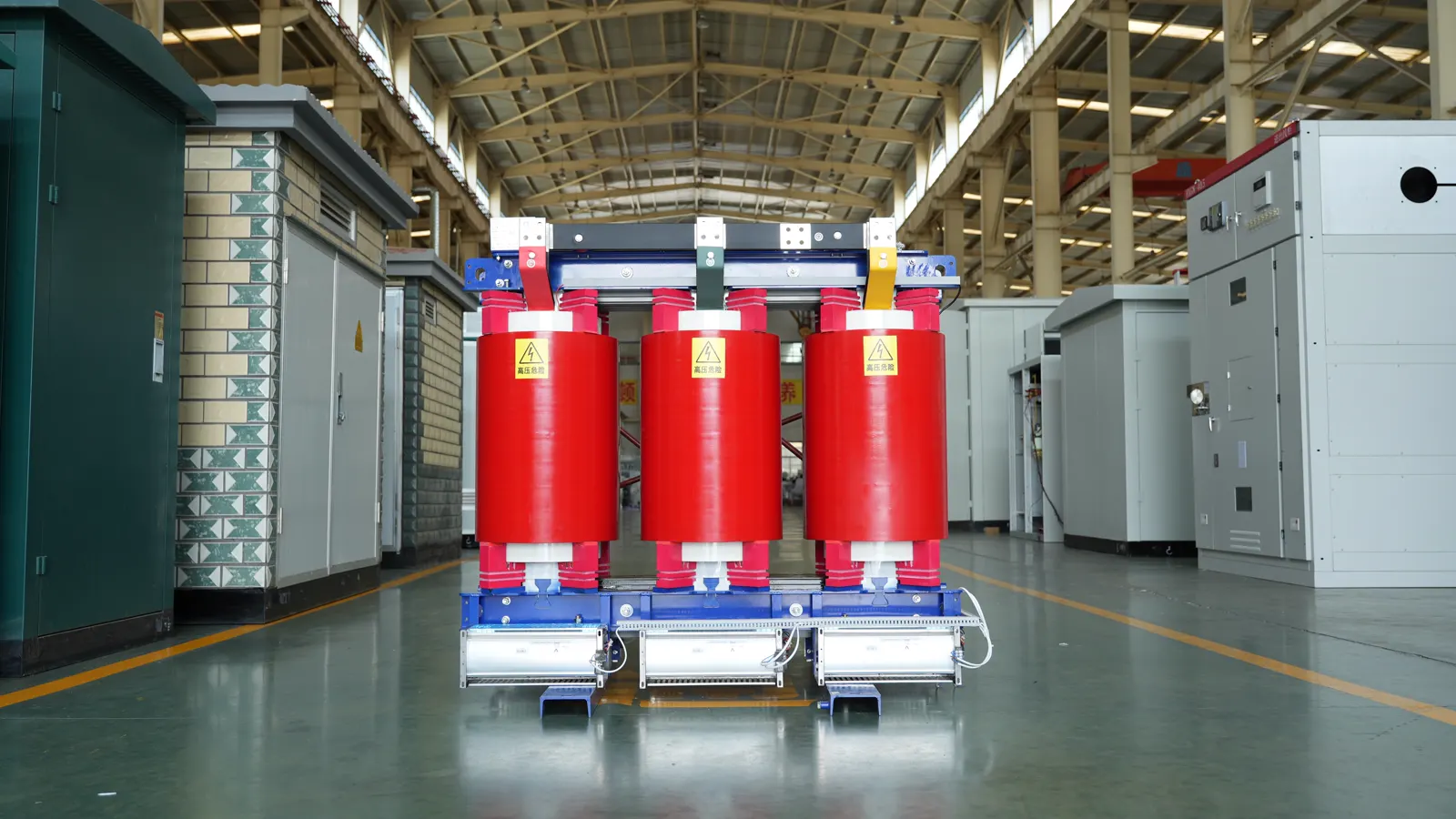

Dry-type transformers
SCB10, SCB12, SCB14 and SCB18 resin-insulated transformers, plus SZCB10 and SZCB12 with on-load tap changing, for indoor power distribution.
Choose a series
- SCB10 specifications
- SCB12 specifications
- SCB14 specifications
- SCB18 specifications
- SZCB10 specifications
- SZCB12 specifications
Need help choosing? Send the required capacity, voltage and operating conditions.
Discuss your requirementsSpecifications
Each transformer series page lists capacity, losses, current, impedance, voltage combinations, tapping and connection groups from the factory document. Missing source values are explicitly marked.
Custom configuration enquiries
The factory selection workbook lists the following enquiry ranges separately from the model loss tables. These are not interchangeable ratings: request confirmation of the exact model, winding material and voltage combination before specification.
| Input voltage (kV) | Output voltage (kV) | Capacity (kVA) | Winding options |
|---|---|---|---|
| 6–11 | 0.4–1.14 | 30–5000 | Copper / aluminium / copper-aluminium |
| 20–24 | 0.4–1.14 | Up to 4000; minimum not stated | Copper / aluminium / copper-aluminium |
| 35–38.5 | 0.4–1.14 | Up to 4000; minimum not stated | Copper / aluminium / copper-aluminium |
| 35–38.5 | 6–11 | Up to 5000; minimum not stated | Copper / aluminium / copper-aluminium |
Source: factory product classification workbook, dry-type worksheet. Other reference ranges in that workbook differ; final capacity and loss values require an approved project datasheet.
Applications
Indoor distribution for commercial buildings, hospitals, stations and other load centres described in the factory product document. Confirm enclosure and ventilation requirements.
